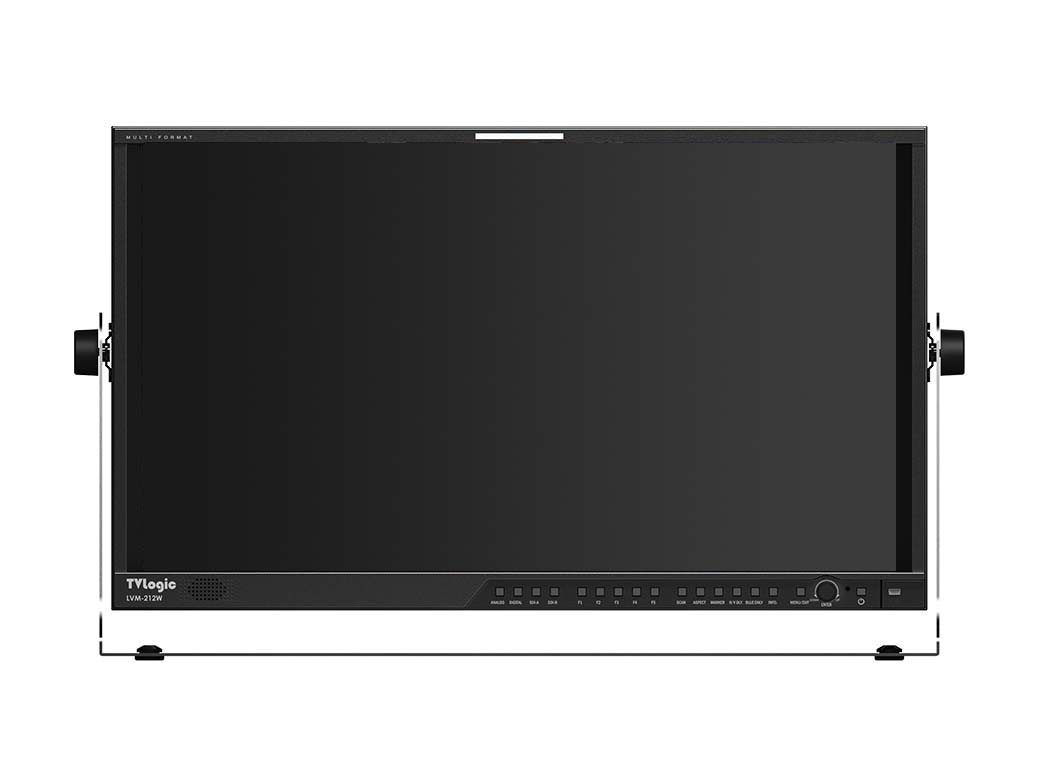

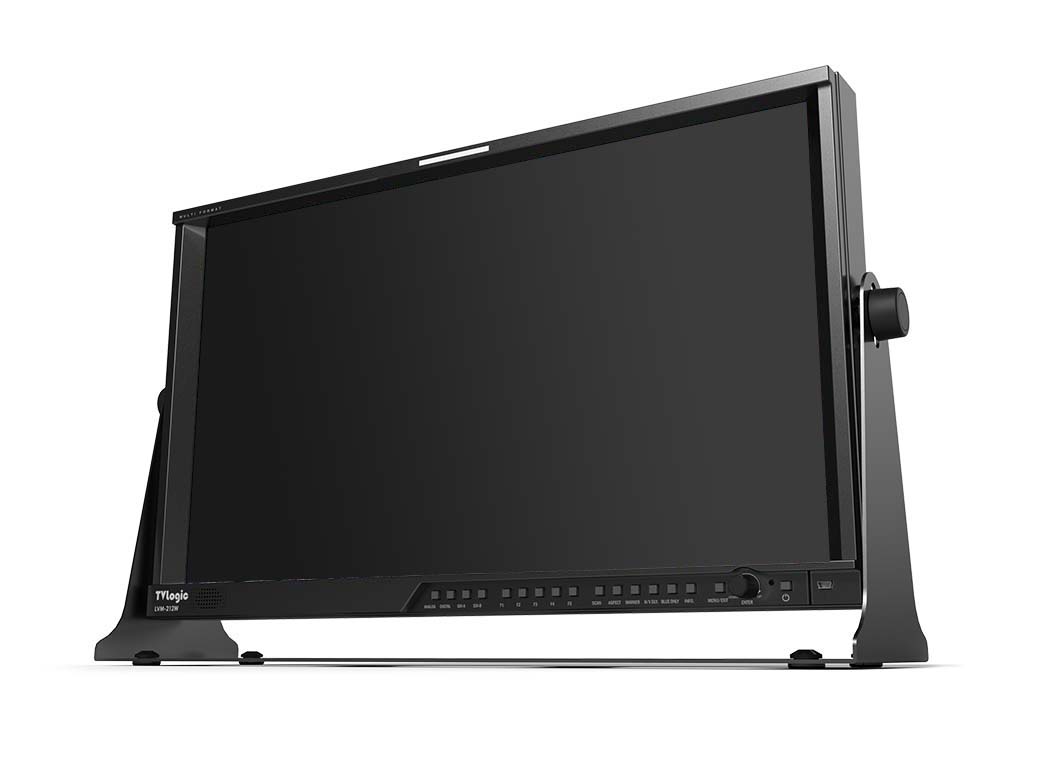

LVM-241S : 24” High-End LCD Monitor

The LVM-241S is our top QC-Grade 24” model with a 24 inch IPS LCD panel with 1920x1200 resolution, wide-gamut reproduction (up to DCI-P3), enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors. A completely redesigned video processing unit provides powerful dual-channel performance and artifact-free image reproduction. Support for various cinema camera log-to-linear LUTs, easy field upgradability and a full array of image processing features are standard.
LVM-241S

LVM-241S LVM-241S LVM-241S

LVM-241S

Display Spec

 Size  24"
 Resolution  1920 X 1200 (16:10)
 Pixel Pitch  0.27mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  400cd/m2
 Contrast Ratio  1500:1
 Display Area  518(H) x 324(V) mm
Input
 3 X BNC  Analog Input
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 3 X BNC  Analog(Loop Through Out)
 2 X BNC  SDI A/B Channel Output (Loop Through Out)
 External Output Port
Input Signal
 Analog  CVBS / S-Video / Component / RGB(D-TV)
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1280x1024/1366x768
 DVI Analog  640x480/720x400/800x600/1024x768/1366x768
 DVI DP  640x480/720x400/800x600/1024x768/1366x768
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF)
 SMPTE 372  Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50)Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
 2K Format  2048 x 1080p (24/24sF/23.98/23.98sF)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  X3 Zoom(PBP),  Camera Lut.,  Picture by picture
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708,  CC-KOR
Calibration
 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
Other Functions
 REMOTE   GPI (RJ45)
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
  Carrying Case,  External Acrylic Filter,  Gold Mount,  ND Acrylic Filter,  Rack Mount Kit(Single),  V-Mount
Dimensions

LVM-241S

Basic Accessory

AC Power Cord Stand-24 USB Cover

Optional Accessory

RMK-24 OPT-AND-24 V-Mount-250 V-Mount-250C AB-Mount-250(AP)G-Mount-250(EMEA) CC_24 CC_24D

[Release Notes]
Date: 20.01.07
[LVM-171S, 241S [ FPGA V01 -> 02 , Application Revision Update : V26 -> V30]
1. Supporting Euro Letter CC
2. Adding New feature: Key Lock
3. Adding New feature: OSD DISPLAY (OSD timer)
4. Adding New feature: Aspect mode
(ANAMORPHIC 1.3X, ANAMORPHIC 1.5X, ANAMORPHIC 2.0X)
5. Adding New feature: PBP Top Bottom mode (PBP4)

Date: 19.07.11
[LVM-171S, 241S [Application Revision Update : V21 -> V26]
1. Adding New feature: CC 608 (Anc/Line21)
2. Adding New feature: Custom 3D LUT function
3. Adding New feature: User Aspect function
4. Adding New feature: DCI 6500K (change to Gamma 2.2, 100nit, 6500K when selecting DCI 6500K,)
5. Adding New feature: Aspect mode (1.3:1, 1.65:1, 1.8:1, 2:1)
6. Adding New feature: Fucntion Key function (Custom LUT)
