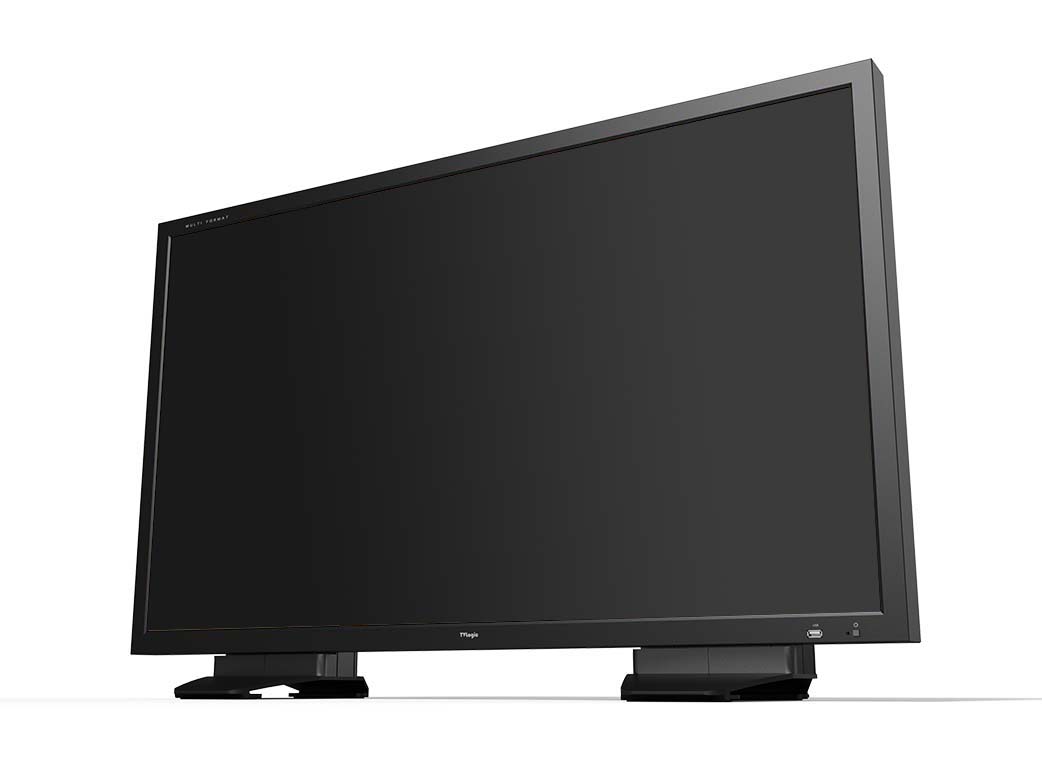

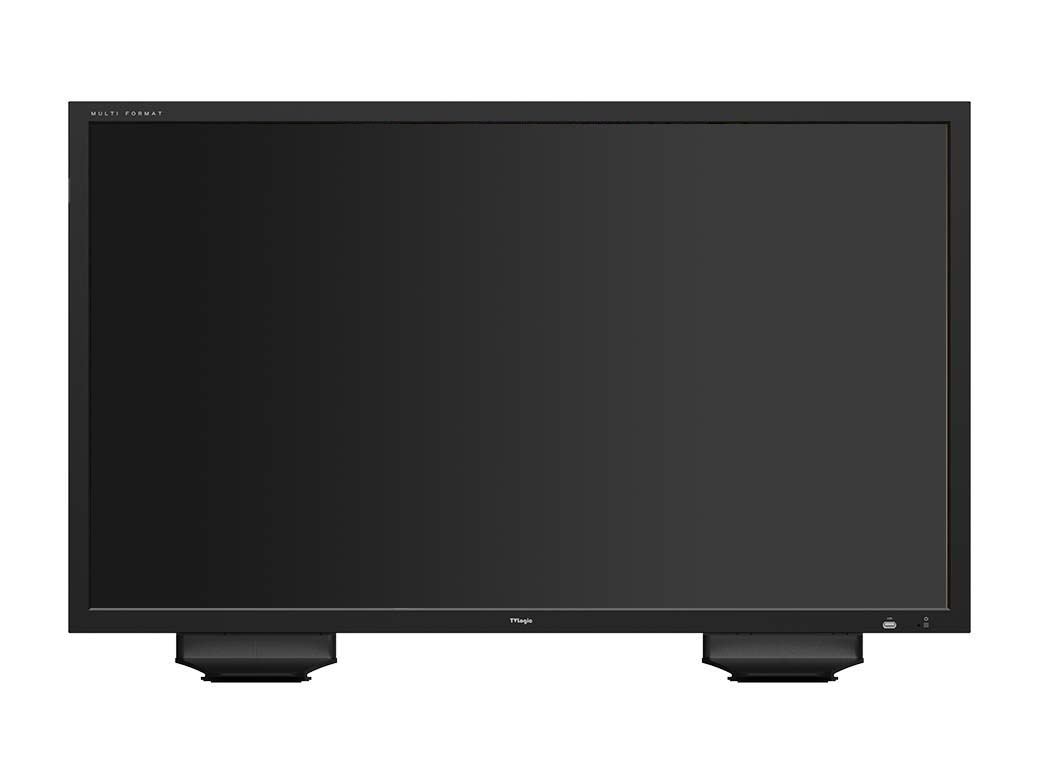

SWM-550A : 55” Studio Wall Monitor

The SWM series monitors are designed with a clean bezel with only a power button and a small indication lamp ideal for studio wall configuration Along with the traditional interfaces of 3G-SDI, HDMI and DVI, an optical fiber interface has been added for added flexibility. Features include Markers/Mattes, Timecode, Audio Level Meters, various CCs and UMDs.
SWM-550A

SWM-550A SWM-550A SWM-550A

SWM

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
1:1 Pixel Mapping Modes for SD/HD1:1 Pixel Mapping Modes for SD/HD

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Closed caption

Closed caption.
Closed caption

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
UMD

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes
Display Spec

 Size  54.6"
 Resolution  1920 X 1080 (16 : 9)
 Pixel Pitch  0.63mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  450cd/m2
 Contrast Ratio  4000:1
 Display Area  1209.6(H) x 680.4(V) mm
Input
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
 1 X SFP Module  Optical Input(Option)
Output
 2 X BNC  3G-SDI A/B Channel Output
Input Signal
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 640×480 / 720×400 / 800×600 / 1024×768 / 1280×1024 / 1600×1200
 DVI DP  640×480/720×400/800×600/1024×768/ 1280×1024/1366×768/1600×1200/1920×1200
 DVI DH  1080p(24/25/30/50/60)/1080i(50/60)/720p (50/60)/480i(60)/480p(60)/576i(50)/576p(50)
SDI Input Signal Formats
 SMPTE 425M-A/B  1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF)
 SMPTE 372  Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
 2K Format  2048 x 1080p (24/24sF/23.98/23.98sF)
Audio
 Audio Out  -
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  H/V Delay,  Marker,  Mono,  Time Code Display,  UMD,  User Aspect
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708,  CC-KOR,  OP42,  OP47
Calibration
Other Functions
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
 Stand,  Optic Module ,
Dimensions

SWM-550A

Basic Accessory

AC Power Cord USB Cover

Optional Accessory

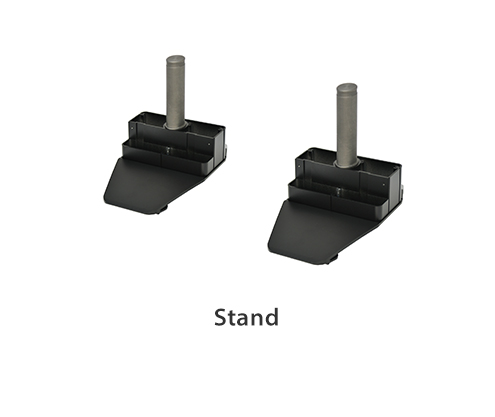

ST-SW55 SFP Module

[Release Notes]
Date : 16.01.21
[SWM Series] [CPU Update : 0.06 -> 0.07] [FPGA update : 02 -> 03] [AM1808 Update : 1114 -> 1115]
- Added to support 4K PID signal on SWM series.
- Added progress OSD while Auto Calibration.
- Debugged error LUT when calibrating SWM series with Specbos 1211 Jeti Probe.
- Reduced time when calibrating SWM series with K10 probe.
- Debugged error when calibrating backlight of SWM series.
- Debugged even and odd error when fed interlace format on Fast mode.

Date : 15.09.22
[SWM Series] [CPU Update : 0.04 -> 0.05] [AM1808 Update : 1112 -> 1113]
- Debugged periodically no video after replacing SB-203 with SB-204 of SWM-170A.
- Debugged USB upgrade problem which is not done.

Date : 14.08.17
[SWM Series] [CPU Update : 0.03 -> 0.04]
- Debugged Observer control regarding power on/off in Observer software.
Date : 14.08.04
[SWM Series] [FPGA Update 01 -> 02][CPU Update : 0.02 -> 0.03] [VXP Update : 001 -> 002] [AM1808 Update : 1111 -> 1112]
- Debugged noise on OSD menu when turning On and Off.
- Debugged screen noise.
- Revised not to change [User Config Set] when [Set Default].
- Added CA-210.
- Debugged Auto Cal.
- Debugged to be incorrect value of K-10 Probe operating Measure Mode.
- Debugged to show correct channel of CA-210.
- Debugged initialized problem by a USB Stick.
