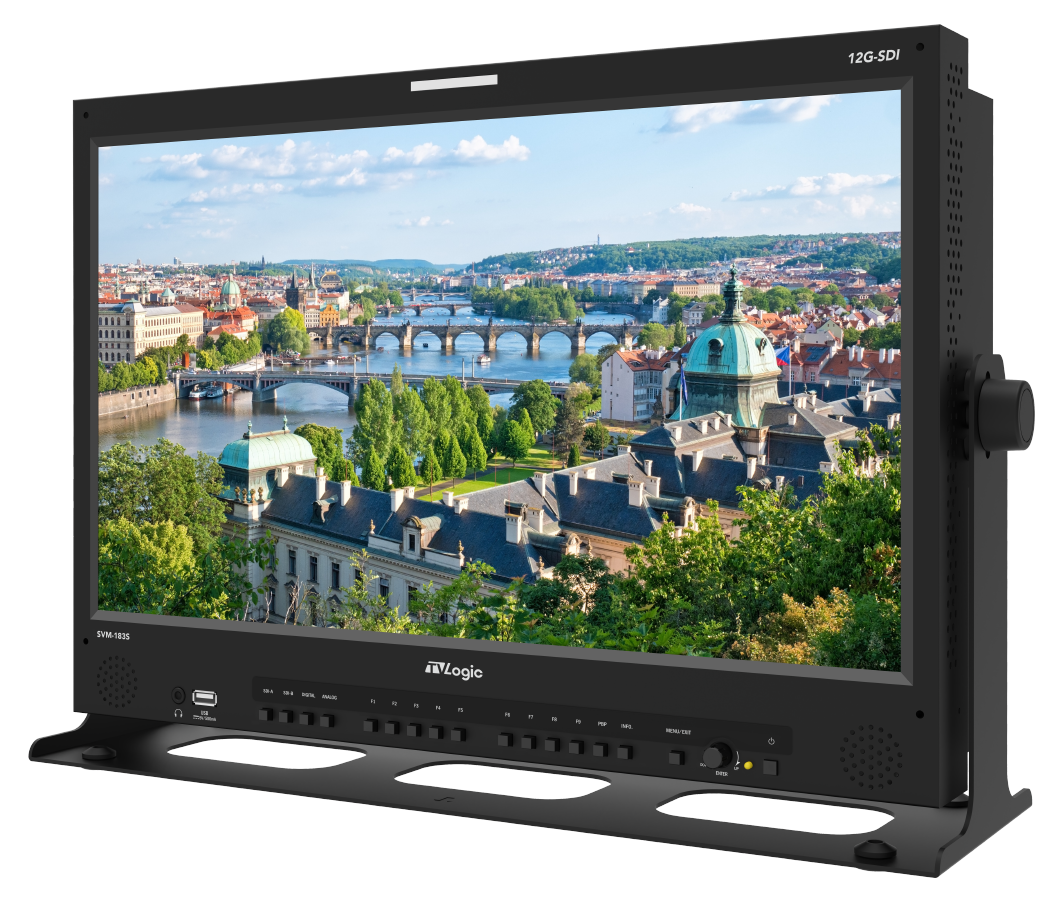

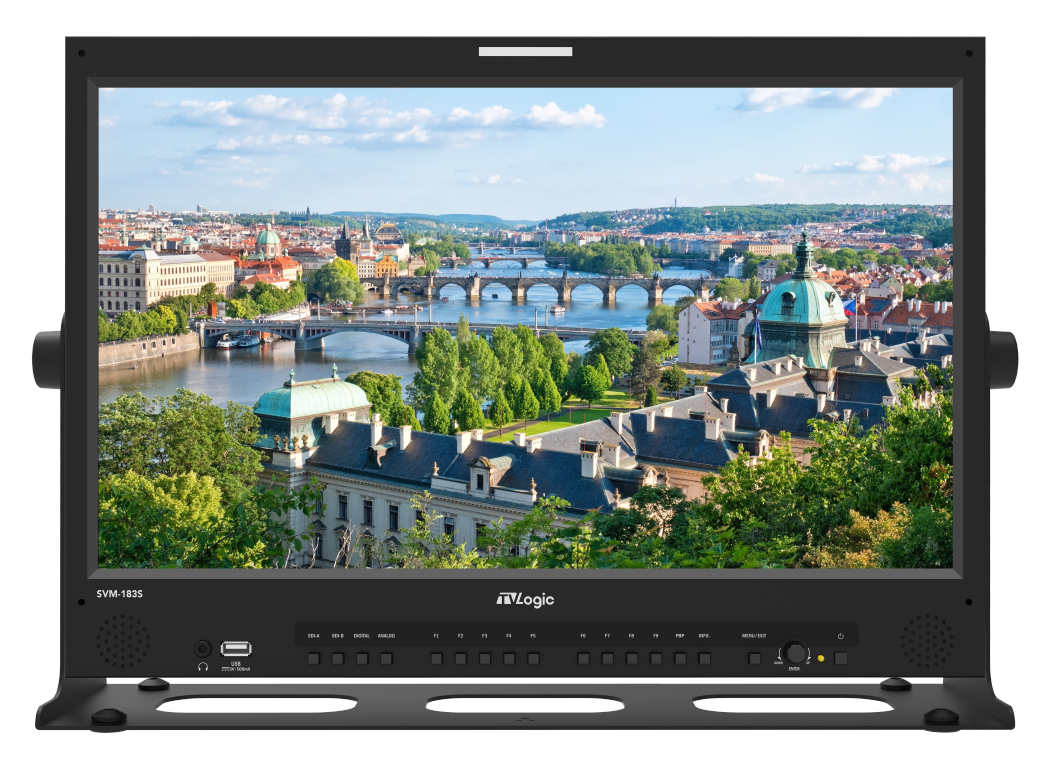

SVM-183S : 18.5" 12G-SDI with FHD LCD Monitor

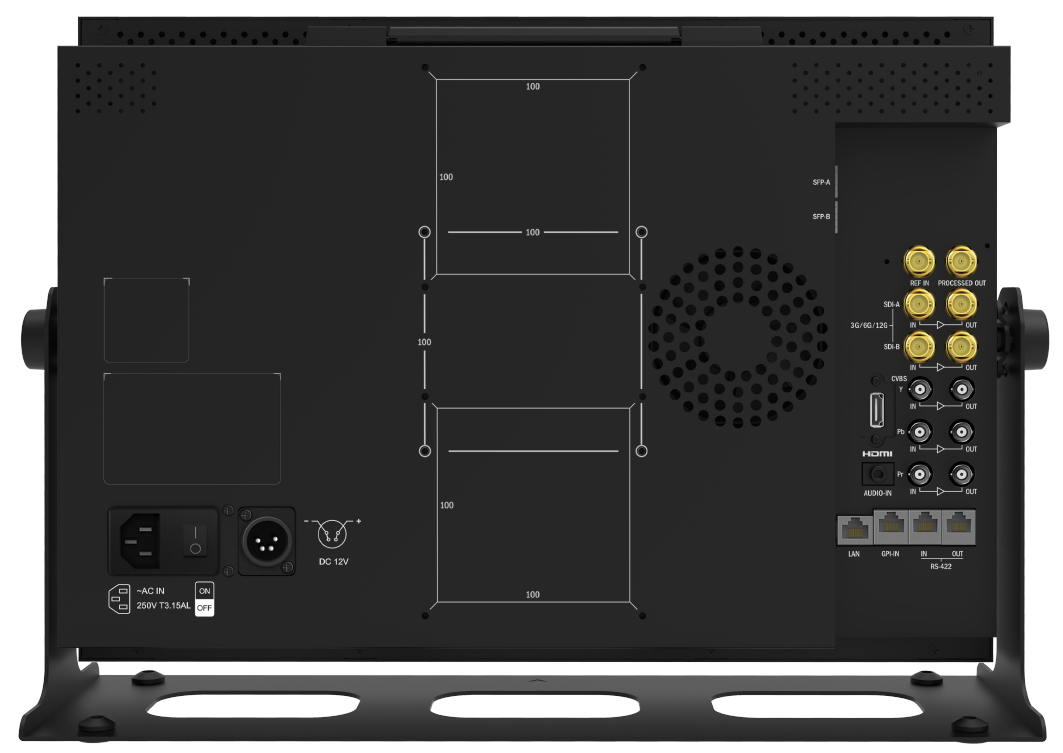

SVM series incorporates 12G-SDI Input(x2), 12G-SDI Output(x2), Reference(External Sync) Input, HDMI 1.4 Input, SFP Input(x2), Processed Monitor Output.



SVM-183S

SVM-183S SVM-183S SVM-183S

18.5" 12G-SDI with FHD LCD Monitor

These new generation of monitors feature wide viewing angle IPS panel, various HDR EOTFs, wide color gamut of DCI-P3 coverage 98%*1, 10bit 1.073 Billion Colors*1, Accurate Color Reproduction by 3D LUT. The SVM series monitors support the high-performance functions such as HDR EOTF, 12G-SDI Picture-by-Picture dispaly, Custom 3D LUT import, 12G-SDI Input to 3G-SDI Processed Output, LUT-applied output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and many more, which make the SVM monitors ideal for live production, versatile monitoring in the studio and field location, edit suite, post production.
(*1: SVM-243S only)
















Main Body Dimensions
Main Body   442.5 x 309 x 84 (mm) / 17.42 x 12.16 x 3.30 (inch)
With Stand  489.3 x 332.8 x 137.5 (mm) / 19.26 x 13.1 x 5.41 (inch)
Weight         7.3kg / 16.09lbs





Product Highlights
• 2 x 12G-SDI Input and Loopout
• 12G-SDI Input to 3G-SDI Downscale Output
• Processed Monitor Output
• Picture-by-Picture Display
• HDR (PQ, HLG, S-LOG3)
• Custom 3D LUT Import by USB Flash Drive
• Auto Detection of SDI Payload ID
• Image Capture & Overlay
• Waveform (YCbCr, RGB) / Vector Scope / Histogram
• Audio Level Meter / Audio Phase Meter
• Fast Mode / Focus Assist / Marker
• Closed Caption in Multi Languages (CC-608, CC-708, OP47)
• Blue/Mono Only / Timecode Display
• Remote Control & FW Update via Ethernet
• Dynamic UMD / Tally / H Flip, V Flip
