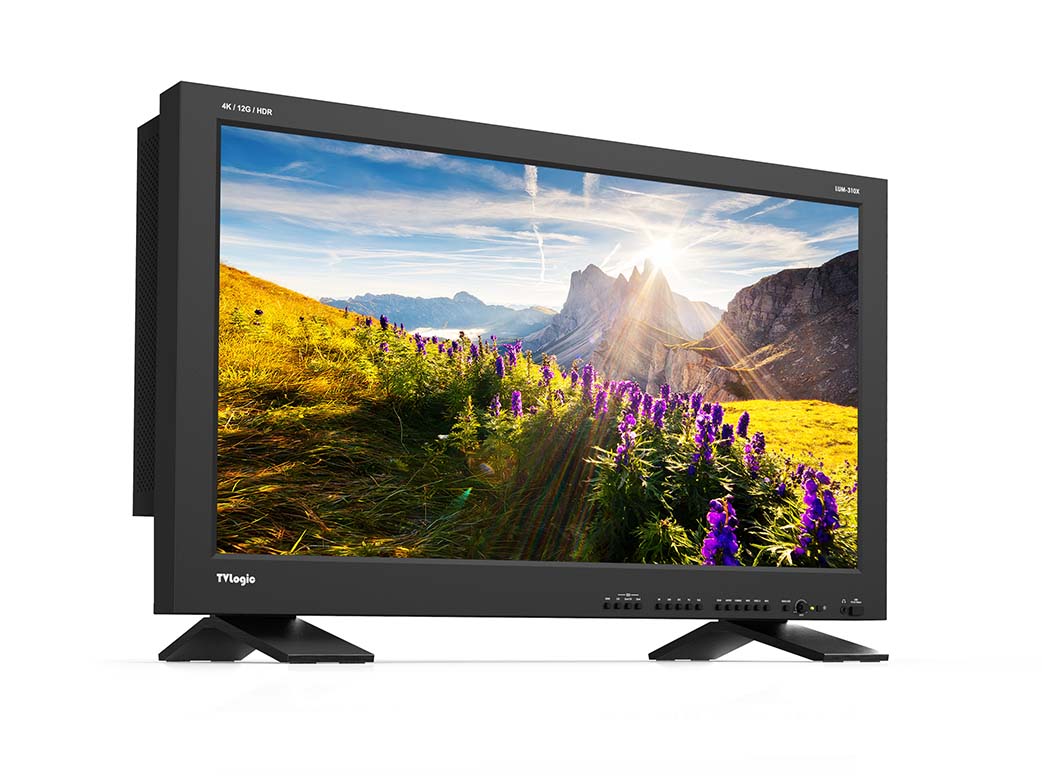

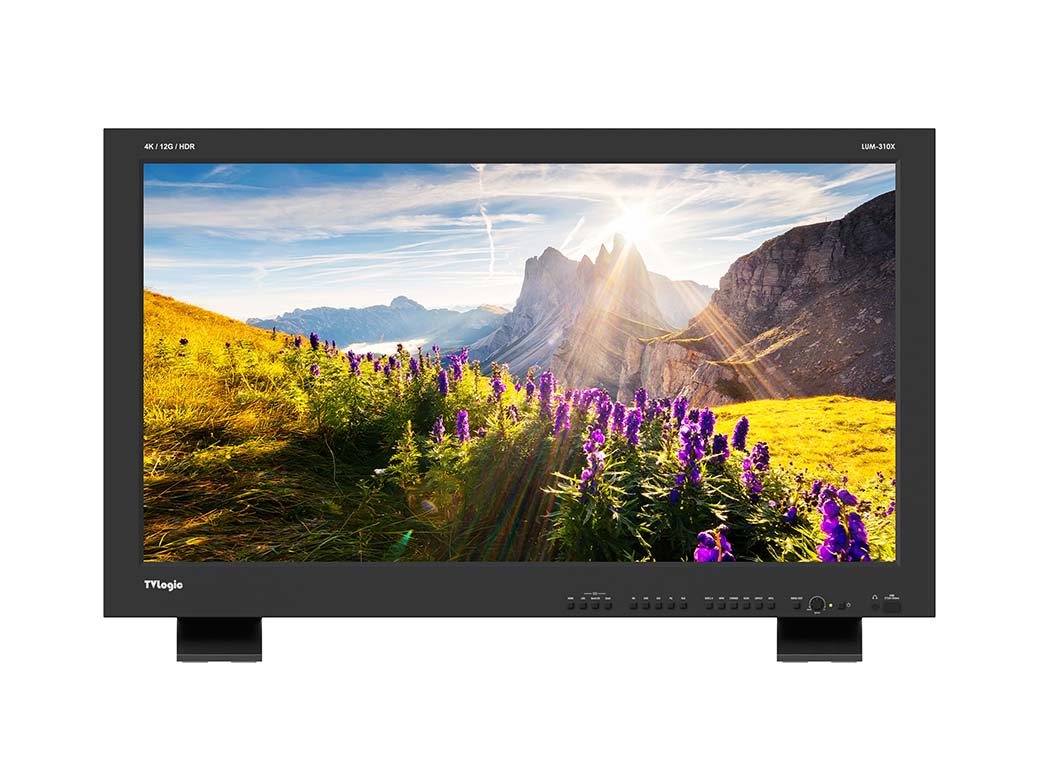

LUM-310X : 31’’ 4K HDR Reference monitor with Dual Layer LCD

The LUM-310X is a 4K HDR Reference Master production monitor with a 31-inch Dual Cell LCD designed to reproduce reference HDR content at a maximum luminance of 1,000 nits with a simultaneous deep black minimum of 0.001 nits. This makes possible a simultaneous contrast ratio nearing 1 million to 1. The LUM-310X su pports various HDR standards and multiple color gamuts including Rec.709, DCI, and Rec.2020.

LUM-310X

Choice:

LUM-310XLUM-310X

Closed caption

Closed caption

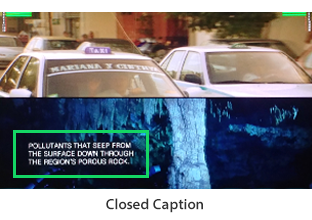

Closed caption.

Blue Only / Mono

blue only

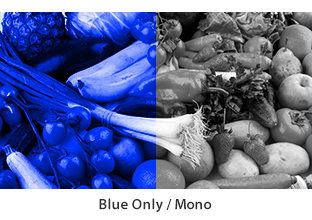

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

H/V Delay

H/V Delay

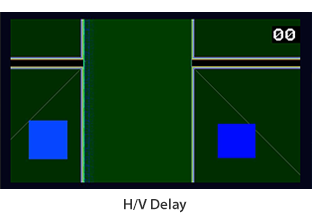

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Marker

Marker

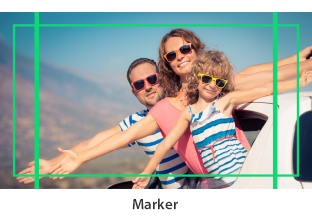

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

User Aspect

User AspectUser AspectUser Aspect

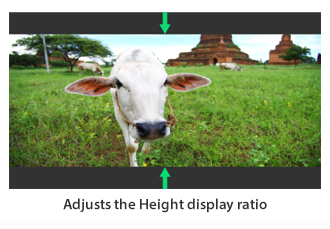

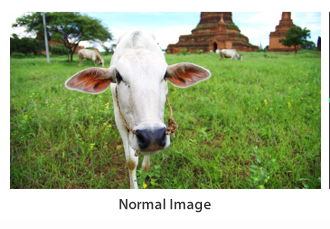

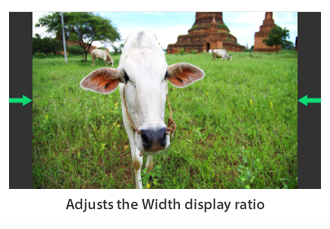

Adjusts the Width /Height display ratio.

Various Scan Modes

Various Scan ModesVarious Scan ModesVarious Scan Modes

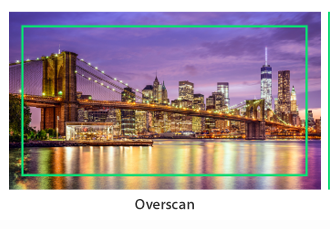

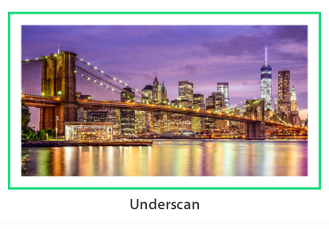

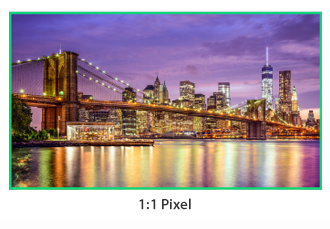

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Display Spec.

 Size  31.1"
 Resolution  4096 X 2160 (17:9)
 Pixel Pitch  0.1704mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  1,000cd/m2
 Contrast Ratio  1,000,000:1
 Display Area  698(H) x 368(V) mm
Input
 4 X BNC  12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
 1 X HDMI  HDMI Input
Output
 4 X BNC  12G-SDI A/B,3G-SDI C/D Channel (Active Through Out)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack)
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y') Zone Check,  Marker,  Max Brightness On/Off,  Mono,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  SingleMode
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708
Calibration
 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
Other Functions
 REMOTE   GPI (RJ45)
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB memory stick
 Ethernet
Options
 Stand,  Carrying Case,

LUM-310X : 31’’ 4K HDR Reference monitor with Dual Layer LCD

LUM-310X

  Product Brochure (1 Page)    -
  Manual   Download
  Leaflet    -
  Total Brochure   Download
