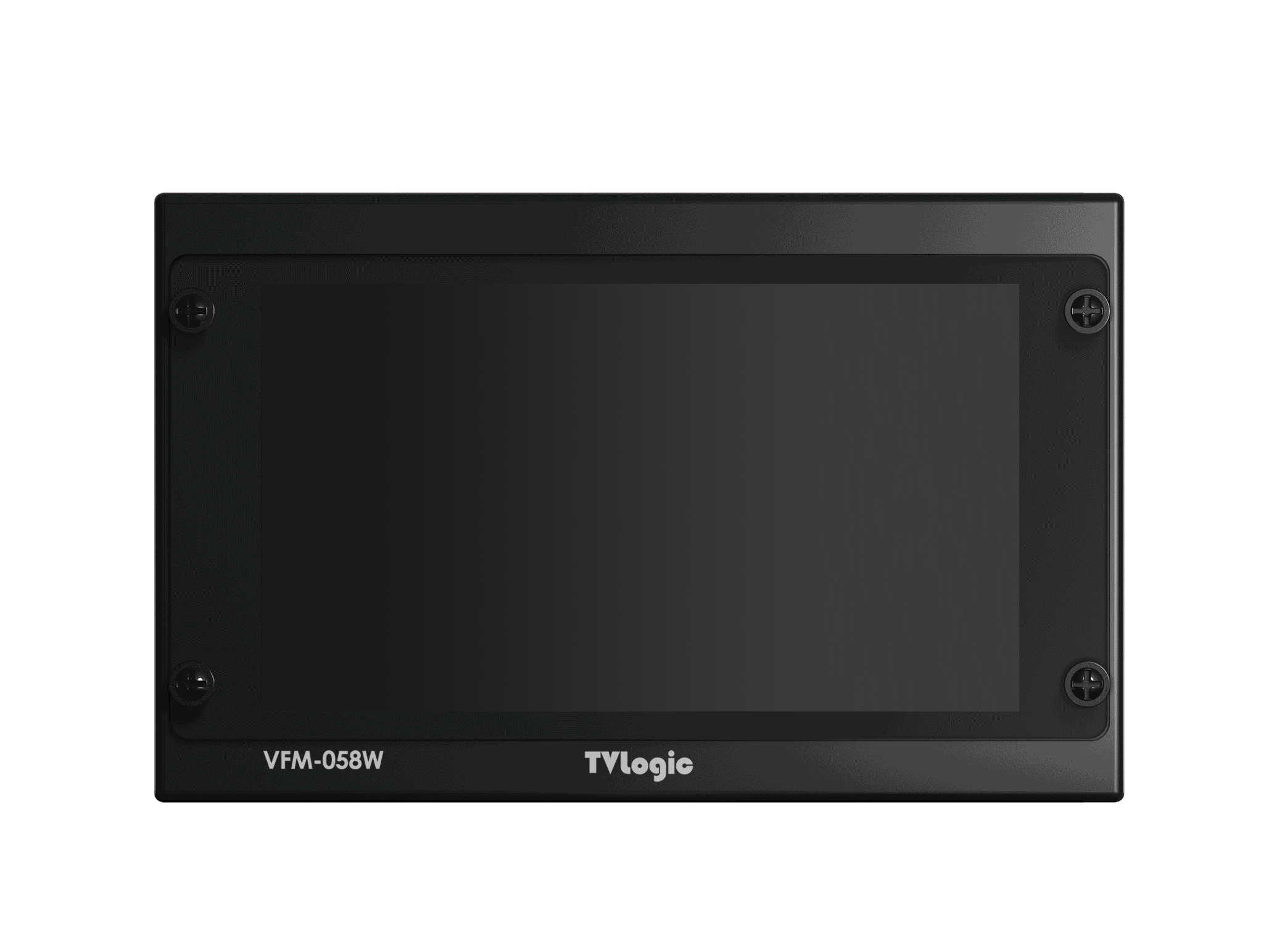

VFM-058W : 5.5” Full HD Viewfinder

The VFM-058W, the lightweight viewfinder monitor, offers an outstanding picture quality with 5.5” LCD, and Full HD resolution of 1920 x 1080. Innovative and ergonomic design of VFM-058W makes you comfortable in the shooting environment and its light solid magnesium case achieves the highest efficiency of ventilation. The VFM-058W supports multi-formats including 3G/HD/SD-SDI and HDMI that offers a wide application range from DSLR cameras to Pro camcorder for broadcasting and movie shooting. The VFM-058W has various features such as Max Brightness function, Temperature Adaptive Color, HDMI-to-SDI conversion output, 1:1 pixel mode, Luma(Y’) Zone Check function, DSLR Scale, Waveform, Camera Lut., Arri Camera Metadata, Vectorscope, Range Error, Focus Assist, Markers, Audio Level Meter with speaker and time code display.
VFM-058W

VFM-058W


3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

ARRI Alexa Camera Metadata over SDI

Takes the Metadata from the ARRI ALEXA is transported through the SDI outputs of the camera, and displays it on the monitor.
ARRI Alex Metadata over SDIARRI Alex Metadata over SDI

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only

Camera Lut.

Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).
Camera Lut.Camera Lut.

Closed caption

Closed caption.
Closed caption

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Focus AssistFocus Assist

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay

H/V Flip

Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.
H/V FlipH/V FlipH/V Flip

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Key Lock

Luma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.
Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker

Max Brightness On/Off

Displays the brightness increases from the normal up to max brightness to obtain a sharp and bright image when shooting outdoors.
Max Brightness On/OffMax Brightness On/Off

Range Error

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.
Range ErrorRange Error

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector

Zoom

Magnifies the input signal from 0% to 90%.
ZoomZoom
Display Spec

 Size  5.5"
 Resolution  1920 X 1080 (16 : 9)
 Pixel Pitch  0.063mm
 Color Depth  16.7M
 Viewing Angle  160°(H) / 160°(V)
 Luminance  450cd/m2
 Contrast Ratio  1,000:1
 Display Area  121(H) × 68(V) mm
Input
 1 X BNC  3G-SDI A Channel Input
 1 X HDMI  HDMI Input
Output
 1 X BNC  3G-SDI Output
 1 X HDMI  HDMI Output
Input Signal
 3G SDI  2.970Gb/s
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50) & VESA/IBM Modes
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF) / 1080i(60/59.94/50)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  H/V Flip,  Key Lock,  Luma(Y') Zone Check,  Marker,  Max Brightness On/Off,  Mono,  Range Error,  Temperature Adaptive Color,  Time Code Display,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.,  Arri Camera Metadata
Closed Caption
Calibration
Other Functions
 USB   Firmware update by USB memory stick
 Ethernet
Options
 Battery Bracket,  Camera Mount, Ball Head,  Carrying Case,  D-Tap Cable,  External Acrylic Filter,  Sun Hood,  V-Mount
Dimensions

Main body Dimensions
- Main Body : 156 x 98 x 33.4 (mm) / 6.14 x 3.85 x 1.31 (inch)
- Weight : 0.34kg / 0.74lbs
- Weight
(heatsink) : 0.12kg / 0.26lbs



[Release Notes]
Date : 16.11.23
VFM-058W [MCU Firmware Update : V0016 --> V0017]
1. Debugged LDS info & Camera index letter error which can not be activated V0016 firmware version.

Date : 16.11.17
VFM-058W [MCU Firmware Update : V0015 --> V0016]
1. Fixed the SDI to HDMI, HDMI to SDI Error
2. Fixed the NTSC, PAL signal error (HDMI input)

Date : 16.10.31
VFM-058W [MCU Firmware Update : V0015 --> V0016]
1. Fixed a typing error (LUT Loading)
2. Fixed a bug (No video loop on HDMI when signal is lost)
3. Changed Factory's Unstable OSD to Stable OSD
4. Minimize the unstable count of HDMI & SDI

Date : 16.04.14
VFM-058W [MCU Firmware Update : V0013 --> V0014]
1. Revised Sony S-Log1/2/3 Lut data

Date : 16.02.03
VFM-058W [MCU Firmware Update : V0012 --> V0013]
1. Added [OutputMode Select] feature.
2. Added [Focus Assist White] feature.
3. Added [Unstable Count] on factory menu

Date : 15.10.27
VFM-058W [FPGA Firmware Update : V0004 --> V0005 / MCU Firmware Update : V0009 --> V0010]
1. Debugged screen noise when turn the monitor on and off.
2. Added ARRI Camera MetaData Display (S/W)

Date : 15.09.04
VFM-058W [FPGA Firmware Update : V0004 --> V0003]
1. A bug(vertical stripes on screen) found in V0004.
2. Use V0003 instead of V0004.
3. The new V0004 will be released as soon as debugging is done.

Date : 15.08.13
VFM-058W [MCU Firmware Update : V0010 --> V0011]
1. Debugged wrongly operating Backlight during calibration.
2. Added function of ARRI Camera MetaData Display.
=> Support ClipName and REC Flag
=> Support Sensor FPS & Project FPS 120 fps

Date : 15.08.03
VFM-058W [FPGA Firmware Update : V0004 / MCU Firmware Update : V0009 --> V0010]
1. Added ARRI Camera MetaData Display feature
2. Added Camera LUT conversion feature
3. Changed the logo, [LUT Loading..] => [Loading..], when booting.

Date : 15.01.19
VFM-058W [MCU Firmware Update : V0008 --> V0009]
1. Changed value of Gamma LUT Default : 2.2 --> 2.4.

Date : 14.12.18
VFM-058W [MCU Firmware Update : V0007 --> V0008]
1. Added an inactivate low battery feartue.

Date : 14.12.01
VFM-058W [MCU Firmware Update : V0006 --> V0007]
1. Debugged not to work Mute when Audio Volume 0.
2. Added feature to select Gamma LUT 2.2 / 2.4

Date : 14.08.07
VFM-058W [MCU Firmware Update : V0004 --> V0006]
1. Debugged related audio.

Date : 14.03.06
VFM-058W [MCU Firmware Update : V0003 --> V0004]
1. Debugged Marker error on Scan Mode [Pixel to Pixel].
2. Debugged not working GPI Tally.
3. Improved Booting speed.
4. Deleted "LUT Load.." message

Date : 14.01.14
VFM-058W [MCU Firmware Update : V0002 --> V0003] [FPGA Firmware Update : V0002 --> V0003]
1. Debugged Vector in HDMI to HDMI: 480p,576p.
2. Debugged output in HDMI to SDI: 480i,576i.
3. Debugged screen noise when changing signal format in SDI to HDMI.
4. Debugged Color Conversion when chaning 3G SDI(SDI to HDMI) into SD.
5. Debugged audio error when feeding SD signal as in HDMI to SDI

Date : 14.01.02
VFM-058W [MCU Firmware Update : V0001 --> V0002] [FPGA Firmware Update : V0001 --> V0002]
1. Debugged Zoom Off in 1080/50/60p.
2. Debugged green screen at No Video
3. HDMI Pixel Clock Inverting.(Noise)
4. Debugged NO VIDEO problem after turnig on.
5. Debugged noise on HDMI input.
